Quick Details
Place of Origin: Fujian, China Brand Name: Naikos Model Number: NKS Series Adhesive: Silicone Adhesive Side: Single-Sided Adhesive Type: Pressure Sensitive Design Printing: No printing Material: Polyester Feature: Heat-Resistant Use: MASKING | Color: Green Thickness: 0.06mm,0.08mm Heat Resistance: 260C Application: powder coating Adhesion (N/25mm): 6 Carrier: Polyester Elongation at Break (%): 40 Corrosion Resistance: 1 Certificates: ROHS Sample: Freely |
Supply Ability
Supply Ability: 10000 Square Meters/Square Meters per Month of polyester tape

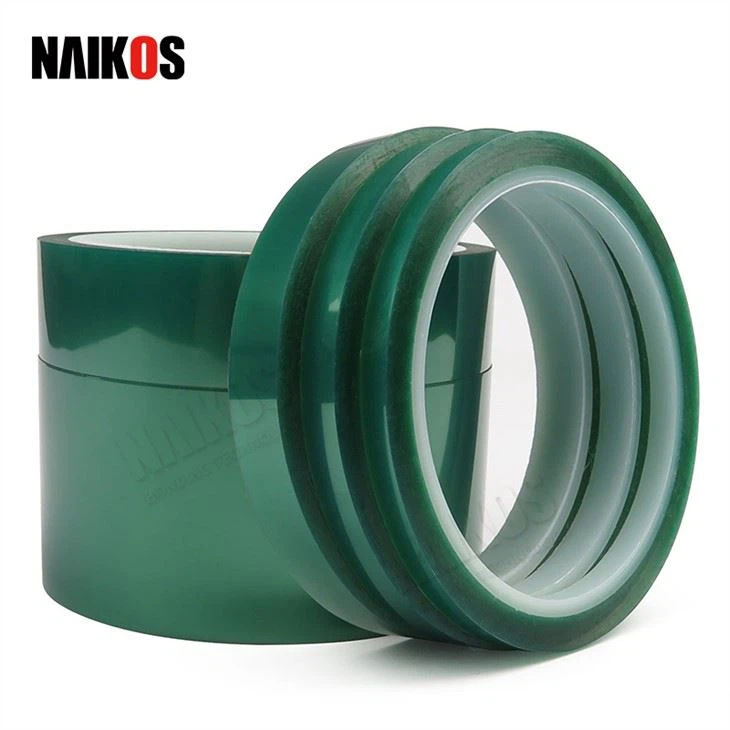

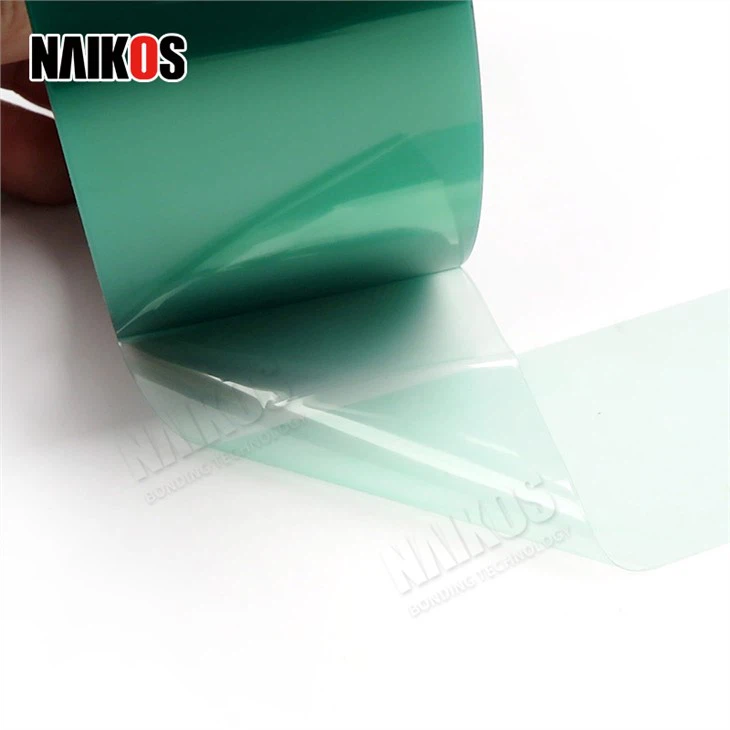

Product Description
Green high-temperature PET polyester tape consists of a polyester film backing and a single side coated with silicone adhesive. The green polyester tape has good viscosity, good serviceability, high temperature, and excellent electrical properties. The is suitable for complex masking applications such as surface masking in production and durable powder coatings.
Features
* Excellent heat & solvent resistance, minimal shrinkage after baking, and clean removal.
* High temperature and good viscosity, excellent electrical properties.
* Polyester adhesive tape resists curling, shrinking, and lifted edges for a sharp paint line every time.
* Polyester tape is excellent for masking parts during powder coating, painting, anodizing, plating, etc.
* Extremely clean & easy removal with no left behind residue.
Construction
Physical Properties
Item | NKS-3565SIG | NKS-5080SIG |
Color | Clear/Green/Blue | Clear/Green/Blue |
Carrier | Polyester | Polyester |
Adhesive | Silicone | Silicone |
Carrier Thickness (mm) | 0.035 | 0.05 |
Adhesive Thickness (mm) | 0.025 | 0.03 |
Total Thickness (mm) | 0.06 | 0.08 |
Adhesion (N/25mm) | 6 | 6 |
Tensile Strength (N/25mm) | 135 | 220 |
Elongation at Break (%) | 40 | 50 |
Corrosion Resistance | 1 | 1 |
Storage Condition | 20°C,65RH | 20°C,65RH |
Long Term Heat Resistance (°C) | 180 | 180 |
Short Term Heat Resistance (°C) | 220 | 220 |
Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.

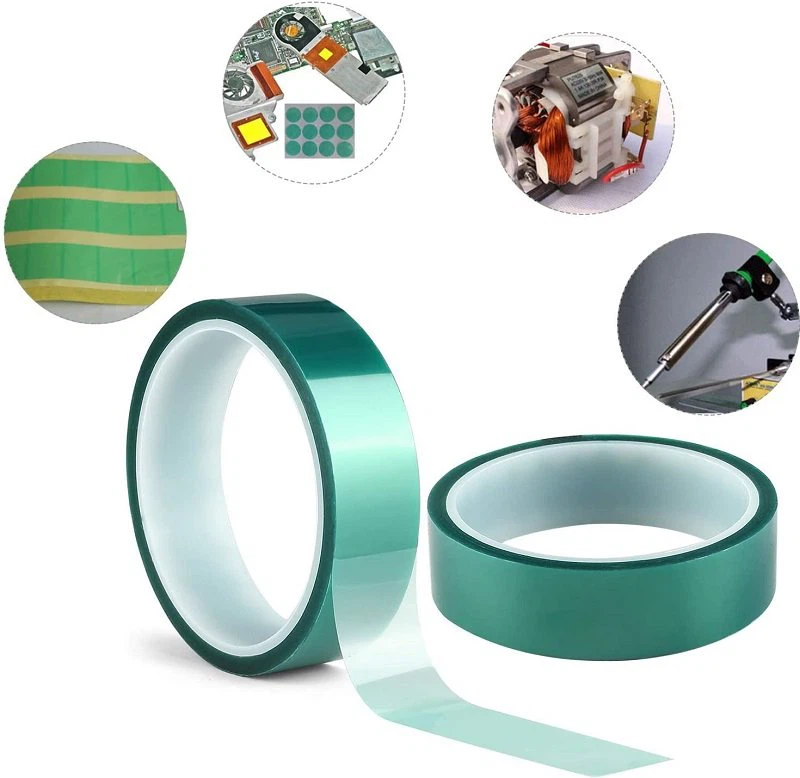

Application
Green high-temperature PET polyester tape is widely used for masking during powder coating, paint spraying, electroplating, or holding parts in place during rework or repair of electronic components.
Shelf life
Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.Available sizes
Width: Maximum width 38.58 inches (980mm). (Can be Customized)
Length: 33m/66m (Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact NKS sales representative.
Application Guidelines
1.) Substrate surfaces should be clean and dry prior to tape application. Isopropyl alcohol (isopropanol) applied with a lint-free wipe or swab should be adequate for removing surface contamination such as dust or fingerprints. Do not use “denatured alcohol” or glass cleaners which often contain oily components. Allow the surface to dry for several minutes before applying the tape. More aggressive solvents (such as acetone, methyl ethyl ketone (MEK), or toluene) may be required to remove heavier contamination (grease, machine oils, solder flux, etc.) but should be followed by a final isopropanol wipe as described above.
Note: Be sure to read and follow the manufacturers' precautions and directions when using primers and solvents.
2.) Apply the tape to one substrate at a modest angle using a squeegee, rubber roller, or finger pressure to help reduce the potential for air entrapment under the tape during its application. The liner can be removed after positioning the tape onto the first substrate.
3.) Assemble the part by applying compression to the substrates to ensure good wetting of the substrate surfaces with the tape. Proper application of pressure (amount of pressure, time applied, temperature applied) will depend upon the design of the parts. Rigid substrates are more difficult to bond without air entrapment as most rigid parts are not flat. The use of a thicker tape may result in increased wetting of rigid substrates. Flexible substrates can be bonded to rigid or flexible parts with much less concern about air entrapment because one of the flexible substrates can conform to the other substrates.
