Product Overview
Naikos very high bond double sided acrylic foam tape series is engineered with a high-density viscoelastic acrylic foam core laminated with high-performance acrylic adhesive systems on both sides. Formulated to adhere reliably across high, medium, and low surface energy (HSE/MSE/LSE) substrates, this industrial strength double sided foam tape provides viscoelastic stress relaxation, permanent joint sealing, and high dynamic shear performance under harsh environmental exposure.
Designed as an engineered alternative to mechanical fasteners (such as rivets, welds, and screws) and liquid adhesives, Naikos very high bond double sided acrylic foam tape eliminates post-assembly operations like drilling, grinding, surface refinishing, and liquid cleanup while ensuring continuous stress distribution along the bonded joint.
Multi-Layer Construction Breakdown
The multi-layer structural architecture of Naikos double sided acrylic foam tape consists of engineered functional layers for maximum shear and environmental stability:

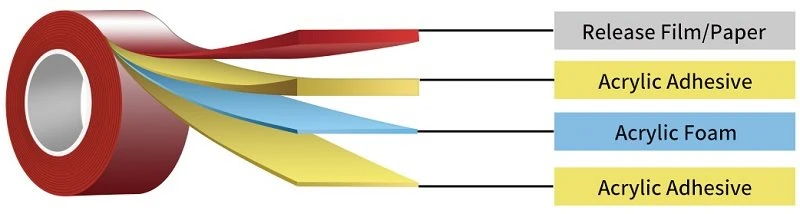

Structural Lamination: Release Liner | Acrylic Adhesive Layer | Acrylic Foam Core | Acrylic Adhesive Layer
Key Features & Industrial Advantages
Permanent High-Strength Bonding
Delivers immediate handling strength and long-term joint durability for demanding indoor and outdoor structural assemblies.
Multi-Material Compatibility
Achieves structural adhesion on dissimilar materials, including metals, glass, composites, plastics, and coated surfaces.
Dynamic Stress Relaxation
Soft closed-cell foam matrix absorbs mechanical shock, dissipates thermal expansion stresses, and provides sound dampening.
Environmental Sealing
Creates a continuous airproof and dustproof moisture seal along glass, panel facades, and equipment enclosures.
Primary Industrial Applications
Engineered for high-reliability assembly across major industrial sectors:
Automotive Industry
External body side moldings, emblem attachment, trim panels, and weatherstrip mounting.
Electronics & Devices
Frame bonding, display panel mounting, component fixing using high-tack acrylic double face tape.
Architectural Glazing
Glass partition mounting, curtain wall panel attachment, facade cladding, and door frame sealing.
Appliances & Equipment
Control panel overlays, handle mounting, decorative trim attachment, and internal structural dampening.
Composites & Plastics
Bonding engineered plastics, fiberglass panels, and composite structural parts.
Metalworking & Signage
Metal sign assembly, structural frame bonding, channel letter mounting, and plate attachment.
Diverse Industrial Applications: Metalworking, Electronics Assembly, Automotive Trim, Household Appliances, Plastics Processing, Architectural Construction
Technical Specifications Matrix
Below is the laboratory-verified technical parameter matrix for the Naikos NKS-8### and NKS-7### acrylic foam adhesive tape series:
| Technical Parameter / Property | NKS-8### Series | NKS-7### Series |
|---|---|---|
| Available Core Colors | Clear / Grey / White / Black | Clear / Grey / White / Black |
| Carrier Substrate | Acrylic Foam | Acrylic Foam |
| Adhesive Chemistry | Acrylic Adhesive | Acrylic Adhesive |
| Total Thickness Range | 0.25 - 3.0 mm (10 - 120 mil) | 0.25 - 3.0 mm (10 - 120 mil) |
| 90° Peel Adhesion | ≥ 26 N/cm (15 lb/in) | ≥ 34 N/cm (20 lb/in) |
| Static Shear (7 days @ 22°C / 72°F) | 1000 g | 1500 g |
| Operating Temperature Resistance | -20°C to +120°C (-4°F to +248°F) | -40°C to +150°C (-40°F to +302°F) |
| Standard Roll Widths | 5 - 830 / 960 mm (0.2 - 33 / 37.8 inch) (Customized Width Available) |
5 - 610 / 900 mm (0.2 - 24 / 35 inch) (Customized Width Available) |
| Standard Roll Lengths | 33 m (36 yards) (Customized Length Available) |
33 m (36 yards) (Customized Length Available) |
Engineering Customization & Converter Services
Naikos provides comprehensive converting services tailored for OEM manufacturers, tier-1 industrial suppliers, and regional distributors:
Precision Roll Slitting
Custom width slitting with tight engineering tolerances for automated dispensing lines.
Precision Die-Cut Converting
Custom stamped shapes, gaskets, washers, and tabs according to customer CAD drawings.
Jumbo Log Supply
Master log rolls available for regional converters equipped with slitting and spooling facilities.
Custom Liner & Private Packaging
Custom-printed release liners, inner plastic cores, and branded retail/wholesale cartons.
Frequently Asked Questions (FAQ)
Q1 How do I select between the NKS-8### and NKS-7### acrylic foam tape series?
The NKS-8### series is optimized for general industrial bonding with a temperature rating of -20°C to +120°C and peel adhesion of ≥ 26 N/cm. The NKS-7### series provides higher dynamic performance, offering enhanced temperature resistance (-40°C to +150°C), superior static shear (1500 g), and higher peel strength (≥ 34 N/cm) suitable for demanding automotive exterior trim and building facade applications.
Q2 Can this tape completely replace mechanical rivets and spot welds?
Yes. In many structural applications, closed-cell acrylic foam tape distributes mechanical stress evenly along the entire length of the joint, preventing localized stress peaks that occur around rivets or screws. Additionally, it eliminates water entry points caused by drill holes and prevents galvanic corrosion between dissimilar metals.
Q3 Are custom thickness options and die-cut parts available for automated assembly?
Yes. Both series are available in thicknesses ranging from 0.25 mm to 3.0 mm (10 to 120 mil). We offer precision CNC die-cutting into custom geometries according to your engineering CAD drawings, supplied on continuous rolls or kiss-cut sheets for fast production-line application.
Evaluate Naikos Acrylic Foam Tape on Your Assembly Line
Optimize your structural joint performance, eliminate mechanical drilling, and secure direct factory pricing for your supply chain.
