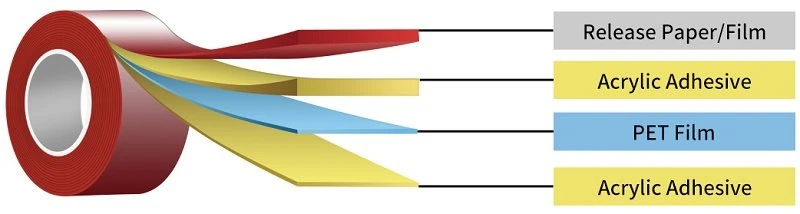

Cross-Sectional Material Architecture
Product Description

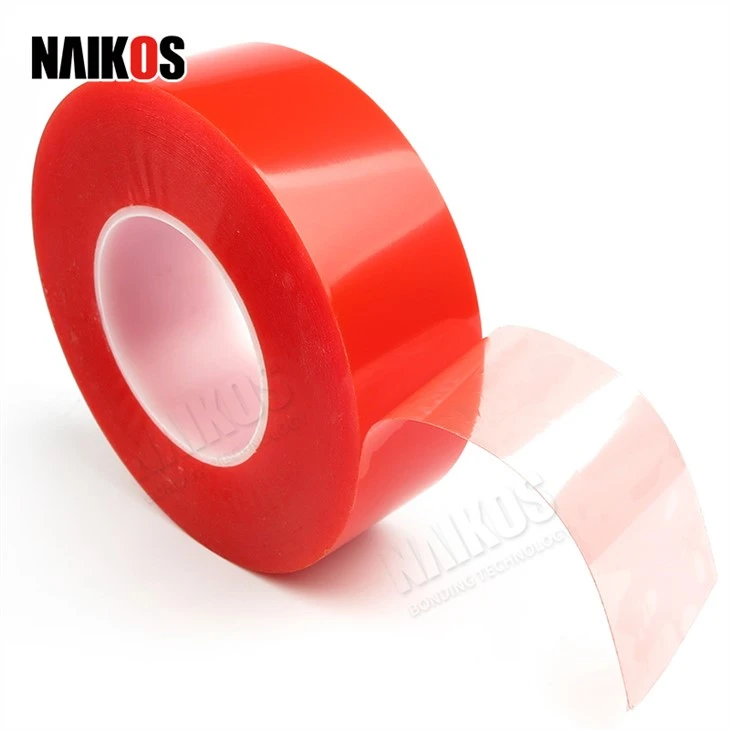

Double sided PET polyester acrylic tape provides high-strength structural bonding across thin-clearance assembly environments. Constructed with a dimensionally stable polymer carrier coated on both sides with a high-tack acrylic adhesive system, this ultra-thin film tape guarantees accurate thickness control without shifting. Naikos manufactures PET adhesive tape in jumbo rolls and custom slit widths for high-volume electronics OEMs, automotive component producers, and industrial converters requiring high shear holding force.
Product Features
HSE & LSE Surface Anchorage
Bonds reliably to high surface energy metals and challenging low surface energy plastics, including PP, PE, PVC, ABS, and acrylics.
Immediate Process Usability
High initial tack permits fast handling and immediate component testing right after manual or automated assembly.
Thermal & Stress Resistance
Maintains adhesive joint integrity under dynamic mechanical stress and continuous operating temperatures up to 150°C.
Waterproof & Moisture Barrier
PET film carrier combined with a dense acrylic matrix blocks water ingress and resists mechanical scrubbing, maintaining joint integrity in wet or high-humidity operating conditions.
Clean Removal & Zero Glue Residue
High-cohesion acrylic adhesive formulation guarantees strong long-term holding force while permitting clean peeling from target substrates during rework without leaving sticky glue transfer.
Physical Properties
| Physical Property | Technical Value |
|---|---|
| Product Name | Double Sided PET Film Tape |
| Color Availability | Clear (Multi Colors Available) |
| Carrier Backing | PET Film |
| Adhesive Matrix | Acrylic Adhesive |
| Total Thickness | 0.01 to 0.205 mm (0.39 to 8 mil) |
| Adhesion to Stainless Steel | >= 15 N/25mm (63.5 oz/inch) |
| Static Holding Power | > 24 Hr |
| Thermal Resistance | 80 to 150°C (176 to 302°F) |
| Slit Width Options | 2 to 1020/1240 mm (Customized Width Available) |
| Standard Roll Lengths | 50 / 100 / 500 / 1000 m (Customized Length Available) |
Application
Customization & B2B Converter Services
Naikos offers complete OEM converting services for our entire PET film tape product line, including double sided PET polyester acrylic tape. Our facility handles precision micro-slitting down to 2mm widths, customized roll lengths, extended-liner kiss-cutting, and custom geometric die-cut pads designed for high-speed automated assembly lines.
Frequently Asked Questions (FAQ)
Q1: How does the dimensional stability of a double sided polyester tape compare to paper or tissue-backed tapes?
The polyester film carrier provides superior tensile strength and zero elongation, preventing tape stretching during high-speed tensioned application. This guarantees tighter dimensional tolerances, precise edge alignment, and clean die-cut edge definition without fiber tearing.
Q2: Can this tape withstand thermal exposure during electronic reflow or component baking processes?
Yes. The cross-linked acrylic adhesive matrix bonded to the heat-stabilized PET core resists continuous thermal exposure between 80°C and 150°C. It resists adhesive softening, edge oozing, or loss of peel strength under high-heat operational conditions.
Q3: How does this PET tape prevent adhesive oozing during rotary die-cutting of micro-gaskets?
The high-cohesion solvent acrylic formulation combined with a high-rigidity PET carrier prevents adhesive displacement during high-pressure press die-cutting. This guarantees clean-cut perimeter edges without sticky residue buildup on tooling or die-cut component edges.
