Versatile Double Sided Tissue Tape Solutions for Crafting, Photo Mounting & Daily Bonding

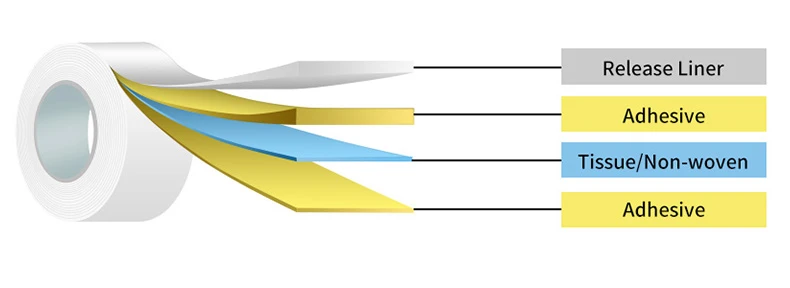

Double sided adhesive tissue tape consists of a non-woven tissue carrier coated on both sides with pressure-sensitive adhesive (acrylic, solvent-based acrylic, hot-melt, or water-based acrylic) and protected by a silicone-coated release liner. The lightweight non-woven carrier provides dimensional stability, hand-tearability, and conformability for bonding polar substrates including paper, cardboard, wood, metals, and plastics. Naikos manufactures log rolls from 2 mm to 1240 mm in width for direct conversion, rotary die-cutting, and manual application.
Technical Construction and Carrier Dynamics
The core mechanics of non woven double sided tape depend on the interaction between the porous tissue matrix and the high-tack pressure-sensitive adhesive coating. Unlike solid film carriers (PET or PVC), non-woven tissue allows partial adhesive penetration through the carrier fibers during hot-melt or solvent coating. This structural integration yields superior internal cohesion and prevents layer delamination during shear stress or continuous tension.
The hand-tearable property of tissue double tape eliminates the need for cutting tools in high-speed assembly, commercial print finishing, and automated manual bonding workstations.
Physical Properties & Engineering Parameter Matrix
The table below outlines the core technical properties across Naikos double coated tissue tape series formulations.
| Property Item | NKS-##DT | NKS-##DTS | NKS-##DTH | NKS-##DTW |
| Color | Translucent | Translucent | Translucent | Translucent |
| Carrier | Tissue/Non-woven | Tissue | Tissue | Tissue |
| Adhesive Type | Acrylic Adhesive | Solvent Based Acrylic Adhesive | Hot Melt Adhesive | Water Based Adhesive |
| Total Thickness | 0.1~0.16 mm (3.9~6.3 mil) | 0.07~0.16 mm (2.75~6.3 mil) | 0.06~0.14 mm (2.35~5.5 mil) | 0.07~0.14 mm (2.75~5.5 mil) |
| Adhesion to Stainless Steel | ≥14 N/25mm (≥50 oz/inch) | ≥14 N/25mm (≥50 oz/inch) | ≥14 N/25mm (≥50 oz/inch) | ≥14 N/25mm (≥50 oz/inch) |
| Holding Power | ≥24 Hr | ≥24 Hr | ≥24 Hr | ≥24 Hr |
| Temperature Resistance | 80~160℃ (170~320℉) | 80℃ (176℉) | 60℃ (140℉) | 60℃ (140℉) |
| Available Widths | 2~1020/1240 mm (Customized Width Available) | 2~1020/1240 mm (Customized Width Available) | 2~1020/1240 mm (Customized Width Available) | 2~1020/1240 mm (Customized Width Available) |
| Standard Roll Lengths | 50/100/200/1000/1200 m (Customized Length Available) | 50/100/200/1000/1200 m (Customized Length Available) | 50/100/200/1000/1200 m (Customized Length Available) | 50/100/200/1000/1200 m (Customized Length Available) |
Application Analysis: Crafting, Photo Mounting, and Industrial Use
1. Manual Crafts and Paper Converting
For scrapbooking, paper flower crafting, and handmade envelope assembly, double coated tissue provides clean edge lines without adhesive squeeze-out or bleed-through. The low total thickness (0.06 mm to 0.16 mm) maintains flat profiles without adding bulk to paper layers.
2. Photo Frame and Poster Mounting
Securing posters, displays, and lightweight wooden photo frames requires high initial tack and long-term shear resistance. The acrylic adhesive formulations adhere firmly to painted walls, glass, polished wood, and coated cardboard, preventing edge peeling under indoor environmental fluctuation.
3. Industrial Splicing, Nameplates, and Trims
In industrial settings, tissue tape serves as the standard medium for continuous paper and film web splicing, automotive interior leather trim bonding, nameplate lamination, and electronics assembly. The acrylic variants (NKS-##DT) resist temperatures up to 160℃, making them suitable for thermal lamination and paint-curing environments.
Frequently Asked Questions (FAQ)
Q: What adhesive formulation should be selected for high-temperature applications?
A: The NKS-##DT series with acrylic adhesive supports operational temperatures from 80℃ up to 160℃ (170~320℉), making it suitable for high-temperature lamination and automotive interior processing.
Q: Can double sided tissue tape be torn by hand without cutting tools?
A: Yes. The lightweight non-woven tissue carrier allows quick and clean hand-tearing in both longitudinal and transverse directions. This eliminates the need for scissors or blades, significantly speeding up manual assembly in craft making, photo mounting, and paper converting operations.
Q: Does double sided tissue tape offer good anti-aging and weather resistance?
A: Yes. The acrylic adhesive systems (particularly solvent-based and pure acrylic formulations like NKS-##DT and NKS-##DTS) provide excellent anti-aging performance, high oxidation stability, and resistance to UV exposure and ambient temperature fluctuations. This ensures long-term bonding integrity for photo frames, nameplates, and indoor displays without adhesive yellowing or debonding over time.
