Products Description

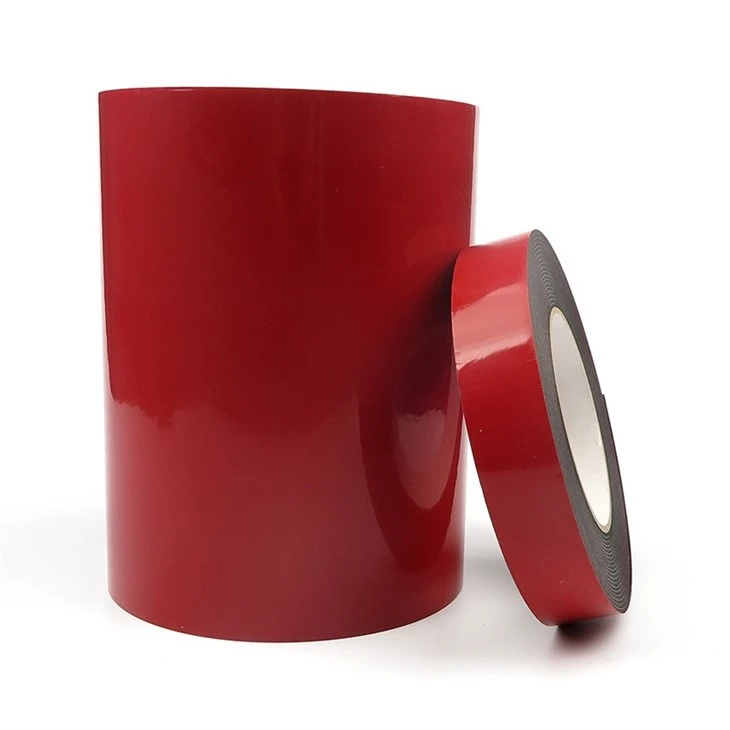

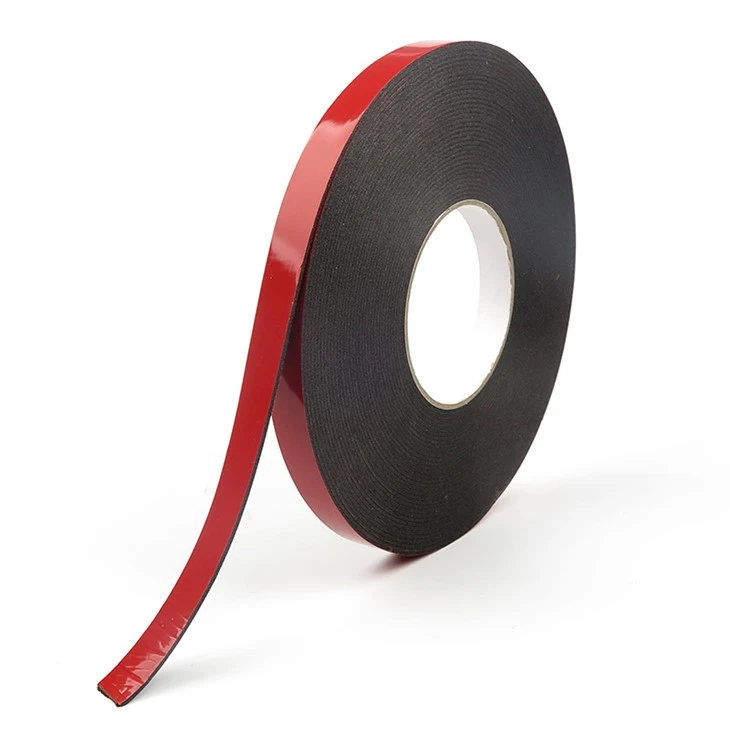

Naikos engineered double sided PE foam tape for mounting as a continuous stress-distribution system built on a cross-linked polyethylene backing. Solvent acrylic coating applied to both carrier faces creates immediate wetting over flat and contoured substrates. The closed-cell backing compresses under mechanical load to bridge dimensional tolerances between rigid joined components while sealing the interface against environmental fluid penetration. Manufacturing plants processing double sided polyethylene tape log rolls experience zero edge crushing during high-speed precision slitting.
Products Features
Dynamic Stress Redistribution: Elastic deformation within the polyethylene core absorbs continuous shear loads and vibrational impact across joint boundaries.
Closed-Cell Seal Protection: The micro-porous polyethylene matrix prevents air, liquid, and fine particulate movement along bonded seams.
Surface Irregularity Compensation: Flexing behavior across the carrier allows PE foam double sided tape formulations to conform over rough, textured, or mismatched assembly faces.
Thermal Exposure Range: Operates without adhesive softening or carrier embrittlement across continuous temperature cycles from -20°C to 120°C.
Converting Integrity: Clean edge cutting during flatbed stamping or high-frequency rotary die-cutting prevents adhesive squeeze-out and foam tearing.
Substrate Compatibility: Achieves stable initial tack across metals, glass, painted finishes, and engineering plastics including ABS and rigid PVC.
Permanent Fastener Replacement: Provides a continuous structural double sided PE foam tape for mounting alternative to mechanical spot welds, rivets, and liquid adhesives.
Physical Properties
| Property | Specification / Test Standard |
| Carrier | PE Foam |
| Adhesive Type | Acrylic Adhesive |
| Adhesive Side | Double Sided |
| Color | White / Black |
| Total Thickness | 0.2mm ~ 3.0mm (8 ~ 120 mil) |
| 180° Peel Adhesion (Steel) | ≥15 N/25mm (≥53 oz/inch) |
| Temperature Resistance | -20°C to 120°C (-68°F to 248°F) |
| Available Width | 4mm ~ 1030mm (Custom Log Roll & Slitting) |
| Roll Length | 33m (Custom Jumbo Rolls Available) |
Products construction
Products Application
Automotive Body & Trim Installation: Tier-1 manufacturing protocols specify double sided foam mounting tape automotive products for fixing exterior side body moldings, emblem badging, wheel weights, and cabin trim components under dynamic road vibration.
Architectural Signage & Enclosures: Structural mounting of outdoor aluminum LED profiles, glass partition panels, and commercial display signage utilizes double coated polyethylene foam tape to absorb thermal expansion differentials.
Consumer Goods & Electronics: Production lines incorporate double tape PE foam as functional cushioning gaskets to secure battery compartments, seal control display panels, and isolate acoustic buzz in domestic appliances.
Electrical Component Support: Applied for securing internal parts, insulation materials, and accessory components in electrical products where stable positioning and shock absorption are required during operation.
Manufacturing Process Improvement: Integrated into production workflows to simplify assembly steps, reduce the need for screws or clips, and improve consistency in repetitive bonding operations.
FAQ
Q1: How does PE foam tape help reduce vibration in assembled parts?
The flexible foam carrier absorbs minor movement and mechanical stress between bonded components. This cushioning effect helps reduce vibration transmission and impact force in applications such as automotive parts, electronic assemblies, and equipment mounting.
Q2: Can PE foam tape replace mechanical fasteners in lightweight assembly applications?
For certain lightweight mounting applications, PE foam tape can provide a clean bonding method without screws or clips. The suitability depends on load requirements, bonding area, environmental conditions, and the design structure of the assembled parts.
Q3: What roll formats are commonly used for PE foam tape production lines?
Industrial users may select jumbo rolls, standard rolls, or converted formats according to their application equipment. Roll dimensions can be matched with manual application processes, automatic dispensing systems, or further converting operations.
Q4: How does the foam carrier improve assembly tolerance between two components?
The compressible PE foam layer helps accommodate small gaps and dimensional differences between mating surfaces. This allows more consistent contact pressure and reduces stress caused by minor variations in component thickness.
Q5: How does PE foam tape improve efficiency in assembly processes?
PE foam tape simplifies the installation process by combining bonding and cushioning functions in a single material. Compared with traditional fixing methods, it can reduce the need for drilling, additional hardware, or complex assembly steps. This helps manufacturers improve production efficiency, maintain cleaner component designs, and reduce extra processing during assembly operations.
