Product Description
Double sided thermal conductive tape is made of advanced thermal conductive PSA. They satisfy the demand for high adhesion and excellent thermal conductive efficiency by providing a preferential heat-transfer path between heat-generating components and heat sink or other cooling devices.
Quick Details
Place of Origin: Fujian, China Brand Name: NAIKOS Model Number: NKS series Adhesive: Acrylic Adhesive Side: Double Sided Adhesive Type: Pressure Sensitive Design Printing: Offer Printing Material: Glass Fabric Feature: Heat-Resistant Use: MASKING | Color: White Thickness (mm): 0.01mm - 0.05mm 180°Peel Strength (PSTC-101 )(N/25mm): >13.72 Temperature Range: -20℃~ +120℃ Insulation Strength (ASTM D149) (KV): 2.0 Thermal Impedance @ 40PSI: 0.453 Thermal Conductivity: 1.20 (W/m-k) Name: thermal conductive adhesive tape Certificates: ROSH Application: Led Panel Lights Heat Transfer |
Features
High tacky thermal conductive PSA. The only pressure is needed to form an excellent bond and thermal interface.
The thermal conductive tape performance of thermal conductivity, insulation, buffer, and high tacky make it the best choice for an electronic application.
Thermal adhesive tape is flexible and conformable. Ideal for uneven surfaces.
Thermal tape is stable and economical with different thicknesses and constructions.

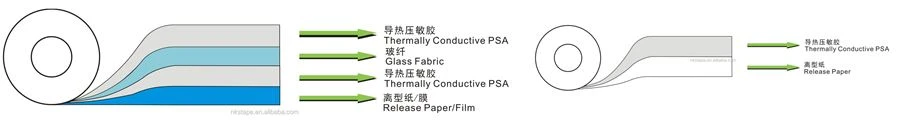

Construction
| Glass Fabric Thermal Tape | Adhesive Transfer Thermal Tape |
Physical Properties
Item | NKS-## | NKS-##N | Test Method |
Carrier | Glass Fabric | N/A | --- |
Adhesive | Thermally Conductive PSA | Thermally Conductive PSA | --- |
| Total thickness（mm） | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
Color | White | White | VISUAL |
Release Liner | Blue PE Film | White Release Paper | VISUAL |
Adhesion (N/25mm) | 12~18 | 12~18 | PST-101 |
Thermal Conductivity(W/m-k) | 1.2 | 1.2 | ASTM D22470 |
Voltage Resistance(KV/mm) | 3.5~8.0 | 3.5~8.0 | ASTM D149 |
Temperature Resistance(Short Term, ℃/℉） | 120(℃) 248(℉) | 120(℃) 248(℉) | EN344 |
Temperature Resistance(Long Term, ℃/℉） | 80(℃) 176(℉) | 80(℃) 176(℉) | EN344 |
Standard width（mm） | 2~1030(Customized Available) | ||
Standard length（m） | 25/50(Customized Available) | ||
Notice: The above were reference values. For detailed information, please contact Naikos.
Packaging & Delivery
Selling Units: Single item
Single package size: 20X20X3cm
Single gross weight: 0.500 kg
Package-Type: Export standard packing for thermal led tape.
(If customers have special requirements, we also can make accordingly.)
Lead Time:
Quantity(Rolls) | 1 - 100 | >100 |
Est. Time(days) | 7 | To be negotiated |
Company Profile
| Xiamen Naikos New Material Co., Ltd was set up in the beautiful city Xiamen of. We produce many kinds of adhesive tapes including thermal tape, foam tape, double-sided tape, high-temperature tape, masking tape, EMI shielding tape, sticky mats, seam sealing tape, etc. The adhesive tapes from Naikos are widely approved by customers all over the world. Customers are warmly welcome to visit us and set up a long-term partnership based on a win-win conception. |
