Product Description

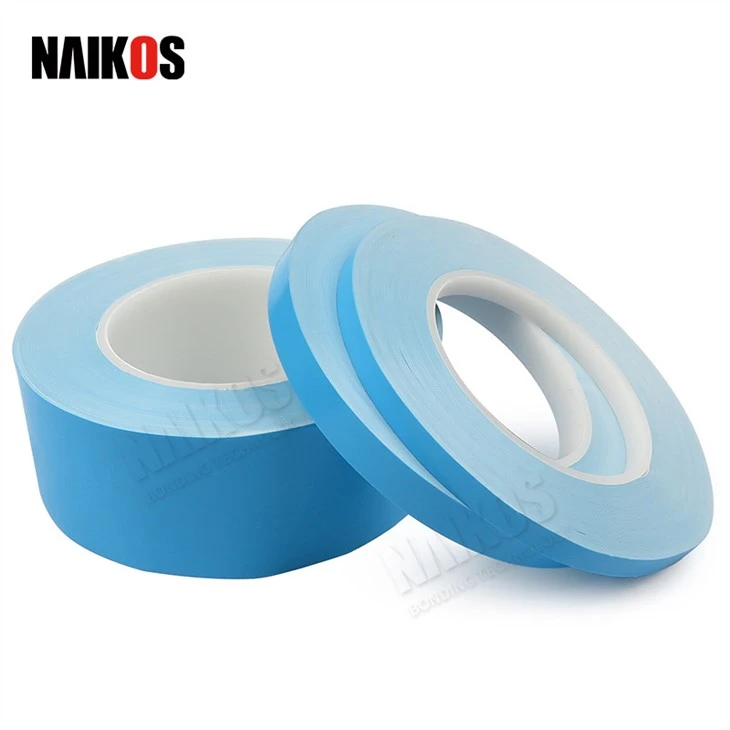

Double sided thermal tape for LED is made of advanced thermal conductive PSA. They satisfy the demand for high adhesion and excellent thermal conductive efficiency by providing a preferential heat-transfer path between heat-generating components and heat sink or other cooling devices. The thermal adhesive tape's excellent stickiness enables the radiator to be firmly fixed to the heating parts without the need for hot-melt adhesive, screws, fasteners, and other ways of fixing.
Features
* Thermal tape has excellent thermal conductivity to easily transfer heat.
* Strong stickiness provides a sturdy and firm stickiness to prevent falling off.
* Thermal conductive tape's excellent insulation feature eliminates any risks of causing short circuits.
* The performance of thermal conductivity, insulation, buffer, and high tacky make it the best choice for an electronic application.
* Thermal transfer tape is easy to use just stick on the surface of any object and tear the blue release paper, which can be tightly and firmly conglutinate on the heat source devices and heat sink to speed the heat dissipation.
Product Construction
| Glass Fabric Thermal Tape | Adhesive Transfer Thermal Tape |
Physical Properties
| Item | NKS-## | NKS-##N | Test Method |
Carrier | Glass Fabric | N/A | --- |
Adhesive | Thermally Conductive PSA | Thermally Conductive PSA | --- |
Total thickness（mm） | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
Color | White | White | VISUAL |
Release Liner | Blue PE Film | White Release Paper | VISUAL |
Adhesion (N/25mm) | 12~18 | 12~18 | PST-101 |
Thermal Conductivity(W/m-k) | 1.2 | 1.2 | ASTM D22470 |
Voltage Resistance(KV/mm) | 3.5~8.0 | 3.5~8.0 | ASTM D149 |
Temperature Resistance(Short Term, ℃/℉） | 120(℃) 248(℉) | 120(℃) 248(℉) | EN344 |
Temperature Resistance(Long Term, ℃/℉） | 80(℃) 176(℉) | 80(℃) 176(℉) | EN344 |
Standard width（mm） | 2~1030(Customized Available) | ||
Standard length（m） | 25/50(Customized Available) | ||
Note: These values are measured values and not guaranteed values.
Application
Double sided thermal tape for LED is widely used for high power LED, High power supply, Computer CUP, GPU, automotive electronic heating module, motor controller, communication equipment, power semiconductor, MOS tube, GBT chip, Video Card RAM, DDR Memory Modules, SSD drives, new energy heating power.
Lead Time:
Quantity(Rolls) | 1 - 100 | >100 |
Est. Time(days) | 7 | To be negotiated |
About Packaging
We can provide different kinds of packaging according to customers' requests, such as labeling, barcode, individual packing, and mailbox packing, you can give us your instruction, and we will follow up on your requests.
Our Advantages
1. Low MOQ
2. OEM and ODM services available.
3. Factory sale directly with much competitive price.
4. Good Quality Control. There are 3 times quality checking before delivery.
5. Free samples are available. Even customized die-cut parts are also available. We guarantee that the samples and mass production tapes would be satisfied.
6. All of the customers’ samples/orders would be recorded and maintained in secrecy. Customers can re-order with convenience and satisfaction.
