Quick Details
Place of Origin: Fujian, China Brand Name: Naikos Model Number: NKS Series Adhesive: Silicone Adhesive Side: Single Sided Adhesive Type: Pressure Sensitive Design Printing: No printing Material: Polyimide Feature: Heat-Resistant Use: MASKING | Color: Transparent or semi-transparent golden Thickness: 25um~175um Long Term Heat Resistance: ≥220C Density: 1420±20 kg/m3 Tensile Strength: ≥135 Mpa Elongation at Break: ≥45% Shrinkage 150℃: ≤1.0% Volume Resistivity 200℃: ≥1.0*1010 Ω.m Relative Inductivity 50HZ: 3.5±0.4 Type: General Used |
Packaging & Delivery
Selling Units: Single item
Single package size: 13X13X5 cm
Single gross weight: 0.300 kg
Package Type: Export standard packing for polyimide tape. (If customers have special requirements, we also can make accordingly.)
Lead Time:
Quantity(Rolls) | 1 - 1000 | >1000 |
Est. Time(days) | 7 | To be negotiated |
Product Description
Features
PCB BOARD PROTECTION Stick to the circuit board Keep safety insulation High temperature resistance 260 degrees. |  |
 | BATTERY PROTECTION Insulation wrapping Used for battery |
SOLDER * Used for board to solder parts * High electrical strength * Peeled off without leaving an adhesive residue |  |
Specification
Item | NKS-Series |
Color | Amber |
Carrier | Polyimide film |
Adhesive | Silicone |
Thickness | 0.04 mm - 0.1 mm, General is 0.06 mm |
Tensile Strength (N/25mm) | 160 - 450 |
Adhesion (N/25mm) | 3N - 8N |
Temperature Resistance(℃) | -20℃ ± 260℃ |
Width(mm) | 2~500(Custom Slit Available) |
Lenth(m) | 33 m （Custom Available） |

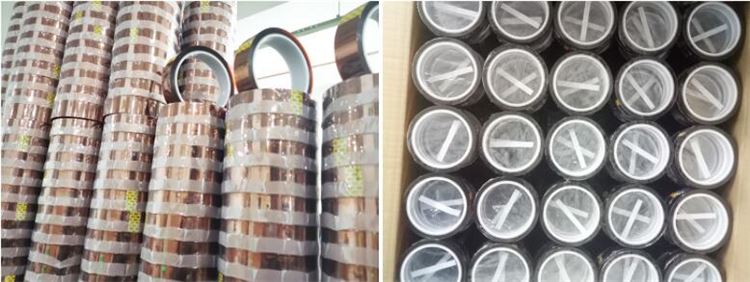

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. |
Company Profile
Xiamen Naikos New Material Co.,Ltd was set up in the beautiful city-Xiamen. We produce many kinds of adhesive tapes including thermal tape, foam tape, double sided tape, high temperature tape, masking tape, EMI shielding tape, sticky mats, seam sealing tape etc. The adhesive tapes from Naikos are widely approved by customers all over the world. Customers are warmly welcome to visit us and set up long-term partnership based on win-win conception. |
