Products Description

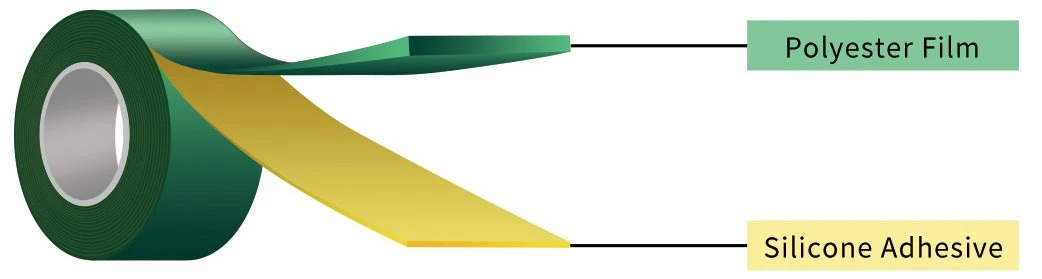

Powder coating high-temperature green PET polyester tape consisting of a polyester film backing, single-side coated with silicon adhesive. The color is green. The polyester tape has good viscosity, good serviceability, high-temperature resistance, solvent resistance, no tinning, no residue, and excellent electrical properties.
Features
Green PET tape has high insulation, high-temperature, and low-temperature resistance, acid and alkali resistance, low electrolysis, good mechanical properties, anti-friction, tear resistance, special adhesive treatment, and strong adhesion. After being torn off, there is no residue left on the masked surface.
Powder coating high-temperature green PET polyester tape used for plating and soldering PCB boards. Prevent plating solution from penetrating into electronic parts. Prevent contamination of passive parts such as plating bath droplets and steam, and shield terminal parts when soldering the circuit surface; Ensure soldering when electronic parts are packaged on the board Solder resistance, solvent resistance, and sealing properties in the process. PET tape even under the harsh conditions of welding, grinding, drying, and electroplating, can be precisely bonded to the board. After use, it can be peeled off almost without residue.
Physical Properties
| Color | Green | |||
| Carrier | Polyester film | |||
| Adhesive | Silicone | |||
| Adhesion (N/25mm) | 6 | |||
| Tensile Strength (N/25mm) | 120-135 | |||
| Temperature Resistance(℃) | 180℃-220℃ | |||
| Width(mm) | 2~1020(Custom Slit Available) | |||
| Length(m) | 33m（Custom Available） | |||
These values are measured values and not guaranteed values.
Adhesion: 6N/25MM
Tensile strength: 135N/25MM
Elongation at break: 40%
Temperature resistance: short-term temperature resistance180°C, long-term temperature resistance 220°C
1. High-temperature protection
2. Insulation / Lithium battery extremely car fixed
3. Transform coil wrapping and fixed
4. Chip insetting
5. 3D printer
Company Profile
Xiamen Naikos Industrial Co., Ltd is a high-technology enterprise that specialized in special tape development, coating, slitting, and die-cutting. Our main products include green polyester tape, powder-coating masking tape, and die-cutting services. We have our well-equipped spacious warehouse with the latest technology and safety features, to ensure the quality and safety of our products.
FAQ
Q1: Do you provide free product samples?
A1: We can freely provide 1-2 samples, but the customer will have to pay the freight cost.
Q2: What are your price and payment terms?
A2: For the trading method, we accept FOB Xiamen, EXW...etc. For payment methods,
we accept Paypal, and Western Union payments for small orders.
Q3: How long does the shipment take after the order is confirmed?
A3: For the order in small quantities, normally we can arrange the delivery within one week. For orders with big quantities,
we will arrange delivery as soon as possible according to the customers' requirements and the situation at the time.
Q4: How about your after-sale service?
Q4: We fully guarantee our product quality and we will provide free technical guidance on operations.
