Quick Details
Place of Origin: Fujian, China Brand Name: China Model Number: NKS2-3 Adhesive: Silicone Adhesive Side: Double-Sided Adhesive Type: Pressure Sensitive, Water Activated, Hot Melt Design Printing: No printing Material: Silicone Feature: Heat-Resistant Use: MASKING | Pad Type: Silicone Polymer Thickness(mm): 0.25~5.0 Color: Grey/Pink/Blue/Black Density(g/cc): 3.0 Hardness(Shore C): 25±5 Thermal Conductivity(W/m-k): 2.0~3.0 Voltage Resistance(KV/mm): >4.0 Temperature Resistance(℃/℉): -40~+220(℃) -104~+428(℉) Volume Resistance(Ω .cm): 3.1*1011 Flame Rating: V-0 |
Product Description

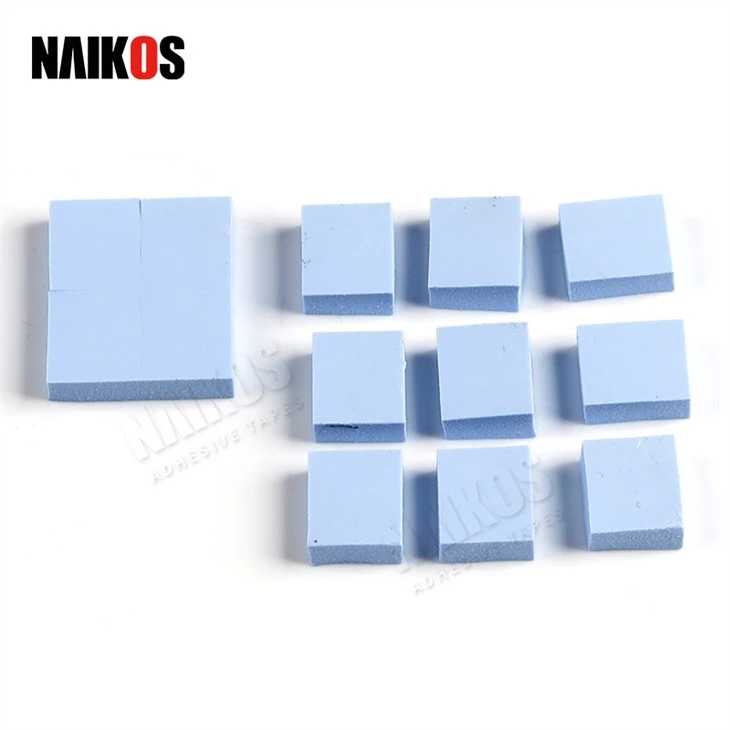

2-3W Thermal pads for high-power LED lamp is a kind of thermal interface with high performance. The thermal conductive silicone pad is soft, self-sticky, and elastic. It can fill the gap between heat-generating components and heat sink, metal mechanism, and shell or other cooling devices. The heat can be transferred out speedily so as to improve the electronic components' working efficiency and prolong the lifespan of the equipment.
Features
* Thermal pad is an upgraded version of the thermal grease Paste, good thermal conductivity, Soft a little sticky, super electrical insulation, it can be arbitrarily cut size.
* Thermal conductive pad has good thermal conductivity and electrical insulation properties, good stability, wide use of temperature, in -40 ℃ -220 ℃（-104~+428(℉)） range does not melt.
* You can according to the size of the gap between the heating element and the heat sink select the appropriate thickness of the thermal silica Pad, and the size of the self-cutting.
* Heatsink pad is nonelectric conductive, Non-toxic, and Non-Corrosive, the is safe to use on electric components. Specially formulated material inside achieves low oil separation and long-lasting performance.
Physical Properties
Item | NKS-###-PAD-TC | NKS-###-PAD-MTC | NKS-###-PAD-HTC | Test Method |
Reinforced Carrier | N/A | N/A | N/A | --- |
Pad Type | Silicone Polymer | Silicone Polymer | Silicone Polymer | --- |
Thickness（mm） | 0.25~12.00 | 0.25~5.0 | 0.25~3.0 | ASTM D374 |
Color | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | VISUAL |
Density(g/cc) | 1.8~2.8 | 3.0 | 3.2~3.5 | ASTM D792 |
Hardness(Shore C) | 30±5 | 25±5 | 25±5 | ASTM D2240 |
Thermal Conductivity(W/m-k) | 1.0~2.5 | 2.0~3.0 | 3.0~6.0 | ASTM D2240 |
Voltage Resistance(KV/mm) | ＞4.0 | ＞4.0 | ＞4.0 | ASTM D149 |
Temperature Resistance（℃/℉） | -40~+220(℃) -104~+428(℉) | -40~+220(℃) -104~+428(℉) | -40~+220(℃) -104~+428(℉) | ASTM D5470 |
Volume Resistance(Ω .cm) | 1.0*1011 | 3.1*1011 | 3.1*1011 | ASTM D257 |
| Flame Rating | V-0 | V-0 | V-0 | UL-94 |
Standard Size（mm） | 200*400(Customized Available) | |||
Note: The above data is the general value of product testing, it is only for reference and does not represent the actual value of this product.
Application
2-3W Thermal pads for high power LED lamps are widely applied for electronic products, motherboard, motor, external pad and footpad, electronic, appliances, high power LED lighting, Car machine, power devices, automotive electronic modules (engine scrubber) Power modules, high power supplies, computer host (CPU, GPU, USICS, RDRAMTM, CD-ROM, IGPT module, hard drives), laptop and any electronic equipment needing to be filled with heat dissipation.
