Quick Details
Place of Origin: Fujian, China Brand Name: NKS Model Number: NKS Type: Insulation Sheet Material: Silicone Application: High Temperature Rated Voltage: >4.0 KV/mm Tensile Strength: > Density(g/cc): 1.9 | Reinforced Carrier: Fiberglass Thickness(mm): 0.30~1.00 Color: Blue Hardness(Shore C): 25±5 Voltage Resistance(KV/mm): >4.0 Temperature Resistance(℃/℉): -40~+220(℃) Thermal Conductivity(W/m-k): 1-6 Volume Resistance(Ω .cm): 5.0*10E13 Size: 200mmx400mm customized |
Product Description

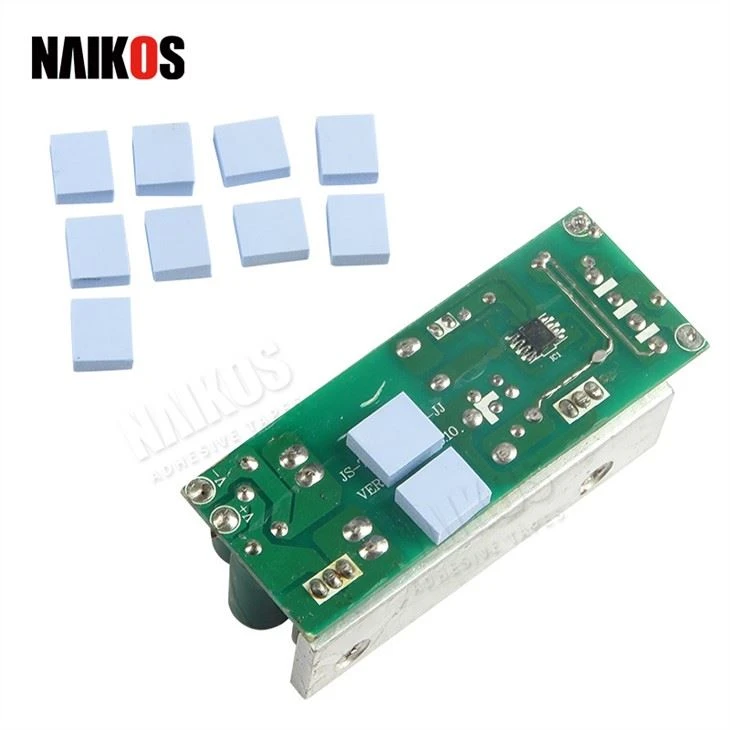

Die-Cutting 1-6W Thermal Pads is a kind of thermal interface with high performance. It is soft, self-sticky, and elastic. A thermal silicone pad can fill the gap between heat-generating components and heat sink, metal mechanism and shell, or other cooling devices. The heat can be transferred out speedily so as to improve the electronic components' working efficiency and prolong the lifespan of the equipment.
Features
★ Excellent thermal conductivity and electrical insulation.
★ The silicone thermal pad is soft, self-sticky, and elastic. Can be used as a buffer absorber.
★ Thermal conductive silicone pads have multiple thicknesses, hardness, and thermal conductivities.
★ Meet the environmental requirements of ROHS and UL.
Physical Properties
Item | NKS-###-PAD-TC | NKS-###-PAD-MTC | NKS-###-PAD-HTC | Test Method |
Reinforced Carrier | N/A | N/A | N/A | --- |
Pad Type | Silicone Polymer | Silicone Polymer | Silicone Polymer | --- |
Thickness（mm） | 0.25~12.00 | 0.25~5.0 | 0.25~3.0 | ASTM D 374 |
Color | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | VISUAL |
Density(g/cc) | 1.8~2.8 | 3.0 | 3.2~3.5 | ASTM D792 |
Hardness(Shore C) | 30±5 | 25±5 | 25±5 | ASTM D2240 |
Thermal Conductivity(W/m-k) | 1.0~2.5 | 2.0~3.0 | 3.0~6.0 | ASTM D2240 |
Voltage Resistance(KV/mm) | ＞4.0 | ＞4.0 | ＞4.0 | ASTM D149 |
Temperature Resistance（℃/℉） | -40~+220(℃) -104~+428(℉) | -40~+220(℃) -104~+428(℉) | -40~+220(℃) -104~+428(℉) | ASTM D5470 |
Volume Resistance(Ω .cm) | 1.0*1011 | 3.1*1011 | 3.1*1011 | ASTM D257 |
Flame Rating | V-0 | V-0 | V-0 | UL-94 |
Standard Size（mm） | 200*400(Customized Available) | |||
Notice: The above were reference values. For detailed information, please contact Naikos.
Application
Die-cutting 1-6W thermal pads are widely applied for High Power products like LED lights, LED TV, PDP, LCD, Laptop, PC, Communication hardware equipment, Routers, IC, CPU, COP, Capacitance, MOS, Power Supply Module, Server, Player, Mobile Phone, etc.
Packaging & Delivery
Selling Units: Single item
Single package size: 20X20X3 cm
Single gross weight: 0.500 kg
Package-Type: Export standard packing for thermal led tape.
(If customers have special requirements, we also can make accordingly.)
Lead Time:
Quantity(Rolls) | 1 - 5000 | >5000 |
Est. Time(days) | 12 | To be negotiated |
