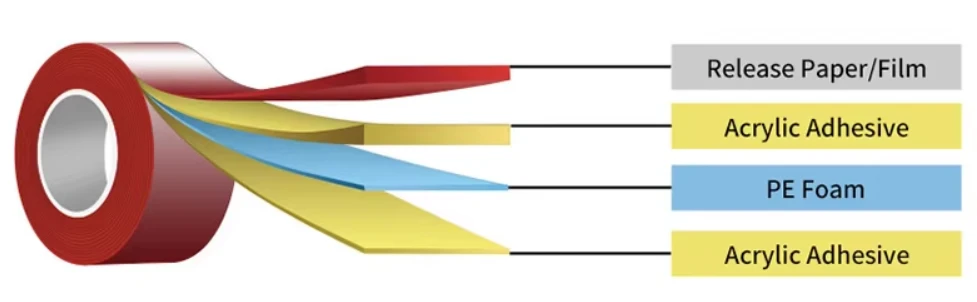

Cross-Sectional Material Architecture
Product Description
Designed to eliminate mechanical fasteners and liquid adhesives, high adhesion double sided PE foam tape delivers immediate structural bonding across mismatched or uneven substrates. Utilizing a highly compressible closed-cell polyethylene core dual-coated with pressure-sensitive solvent acrylic adhesive, this tape absorbs joint strain caused by thermal expansion differentials. Naikos manufactures high-grade double sided polyethylene tape in custom widths and pre-cut formats for global Tier-1 industrial suppliers and OEM integrators.
Product Features
Immediate Surface Anchorage
Our high adhesion double sided PE foam tape develops rapid tack on metals, engineering plastics, coated timber, and composite panels upon application pressure.
Environmental Endurance
Maintains structural holding force without plasticizer migration, yellowing, or adhesive breakdown under direct outdoor weathering.
Substrate Adaptation
Compressible polyethylene backing deforms into micro-rough surface textures to maximize effective contact area.
Acoustic & Vibration Isolation
Dampens mechanical chatter, reduces acoustic resonance, and creates a barrier against dust and humidity intrusion.
High-Speed Converting Compatibility
Engineered for clean slitting, rotary die-cutting, and smooth liner release in continuous automated assembly lines.
Physical Properties
| Technical Parameter | Specification Value |
|---|---|
| Product Code | NKS-#####P |
| Color Options | White / Black |
| Carrier Backing | PE Foam |
| Adhesive Formulation | Acrylic Adhesive |
| Thickness Range | 0.2 to 3.0 mm (8 to 120 mil) |
| Peel Adhesion (Stainless Steel) | >= 15 N/25mm (>= 53 oz/inch) |
| Static Holding Shear | > 24 Hr |
| Operating Thermal Limits | -20 to +120°C (-68 to +248°F) |
| Slit Width Capability | 4 to 1030 mm (Customized Width Available) |
| Standard Roll Lengths | 33 / 50 / 200 / 300 m (Customized Length Available) |
Application
Customization & OEM Converting Solutions
Naikos operates complete direct-factory converting tooling for our entire double coated polyethylene foam tape product line, including our flagship double sided PE foam tape. We provide high-precision log slitting from 4mm up to 1030mm, bobbin spool winding, custom release liner integration, and intricate die-cut stamped components supported by technical CAD drawings.
FAQ
Q1: How does this foam tape distribute mechanical stress compared to rivets or screws?
Unlike localized mechanical fasteners that create high-stress point loads, the elastic PE foam carrier distributes dynamic shear and tensile loads uniformly across the entire joint area. This continuous stress dispersion prevents stress concentration, dampens structural vibration, and protects delicate substrates from fatigue cracking.
Q2: What temperature limits apply during continuous dynamic load exposure?
The tape operates reliably between -20°C and +120°C. Its cross-linked PE structure maintains mechanical shear resistance under cyclic temperature changes without softening or adhesive creep.
Q3: Can Naikos deliver die-cut components pre-placed on extended pull-tab liners?
Yes. We supply custom kiss-cut shapes on continuous rolls or discrete sheets featuring extended liner tabs to facilitate manual removal and streamline automated pick-and-place assembly.
