Products Description
Our thin double sided PET film tape features an ultra-thin, dimensionally stable polyester backing coated on both sides with a high-performance acrylic adhesive matrix. Engineered for critical industrial bonding where standard filmic tapes fail under physical strain, this PET film tape delivers outstanding holding power and strong peel adhesion (≥15 N/25mm) on both high surface energy and low surface energy substrates. The rigid polyester carrier acts as a stabilizer during high-speed rotary slitting and precision press-stamping, preventing backing deformation and securing clean edge definition across automated packaging and electronics manufacturing lines.
Products Features
Exceptional 180° Peel and Shear Balance: Formulated to achieve an adhesion strength exceeding 15 N/25mm on stainless steel, ensuring immediate bonding integrity upon initial pressure application.
Elevated Thermal Tolerance: Sustains operational stability across thermal profiles ranging from 80°C long-term up to 150°C short-term peak exposures without adhesive mass degradation.
Superior Dimensional Stability: The high tensile strength PET carrier prevents longitudinal stretching during automated dispensing, maintaining strict tolerances on narrow-width rolls.
Versatile Material Compatibility: Establishes strong mechanical anchoring across HSE and LSE materials, including metals, glass, ABS, Polycarbonate, PP, PE, and PVC.
Die-Cutting and Converting Precision: High internal cohesive strength prevents adhesive stringing, bleeding, or edge oozing during complex die-cutting, kiss-cutting, and laser processing.
Chemical and Environmental Endurance: Resists degradation from humidity, UV radiation, industrial oils, and common solvents, locking component position over extended service lifespans.

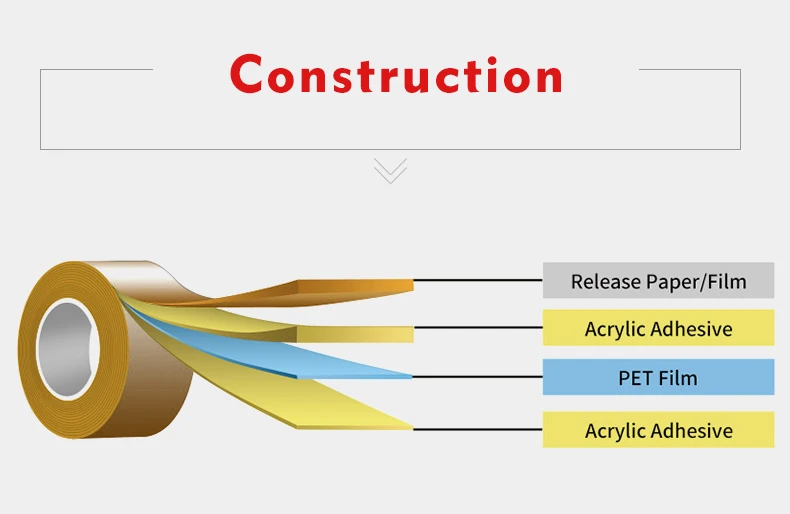

Products construction
Technical Specifications
| Technical Parameter | Specification Value |
| Carrier Base Material | PET Film |
| Adhesive Chemistry | Acrylic Adhesive |
| Color Finish | Clear (Multi Colors Available) |
| Total Thickness | 0.01 – 0.205 mm (0.39 – 8 mil) |
| Adhesion to Stainless Steel | ≥ 15 N/25mm (63.5 oz/in) |
| Holding Power (Static Shear) | > 24 Hr |
| Temperature Resistance | 80°C to 150°C (176°F to 302°F) |
| Width | 2 – 1020 / 1240 mm (Customizable) |
| Length | 50 / 100 / 500 / 1000 m (Customizable) |
Products Application
This double coated polyester tape serves as an essential structural fixing media across high-precision assembly lines where bond-line height must be strictly controlled:
Electronics and Optoelectronics Assemblies: Secure mounting of LCD reflective films, touch-screen lens surrounds, membrane switches, and battery pack insulating wrap layers.
Automotive Interior and Exterior Components: Bonding ABS plastic badges, decorative interior trims, side mirror heating elements, and cable harness positioning tags.
Plastic and Film Web Splicing: High-speed continuous flying splices for plastic films (PP, PE, PVC), paper webs, and commercial sign lamination.
Gasket and Component Attachment: Fixing thin metallic nameplates, rubber dampening pads, and shielding foams where thin double sided PET film tape eliminates profile bulking.
FAQ
Q1: How does the viscoelastic loss factor (tan δ) of this PET adhesive tape prevent bond degradation under continuous thermal-mechanical cycling?
A: Our acrylic adhesive matrix is engineered with a optimized viscoelastic loss factor to absorb high-frequency vibrational stress and thermal expansion differences between dissimilar substrates (such as aluminum to glass). Under cyclic temperature changes from 80°C to 150°C, the cross-linked polymer network prevents shear creep and interfacial micro-cleavage, locking the bond line without adhesive fatigue or edge lifting.
Q2: Will the 0.01 mm ultra-thin option of this PET adhesive tape suffer from adhesive squeeze-out during heavy nip-roller lamination?
A: No. The high internal cohesive strength of our cross-linked acrylic formulation, combined with strict coat-weight control, prevents lateral adhesive migration under high pressure. This preserves crisp perimeter edges and prevents roller contamination during continuous roll-to-roll lamination.
Q3: How does this double sided polyester tape maintain structural bond integrity when exposed to industrial cleaning agents or aliphatic hydrocarbon solvents?
A: The fully cross-linked solvent acrylic adhesive matrix provides exceptional chemical inertness against surface contact with aliphatic solvents, motor oils, and alcohol-based cleaning agents. The impermeable PET film carrier prevents liquid penetration into the adhesive interface, maintaining high static shear holding power without adhesive swelling or edge lifting.
