Products Description

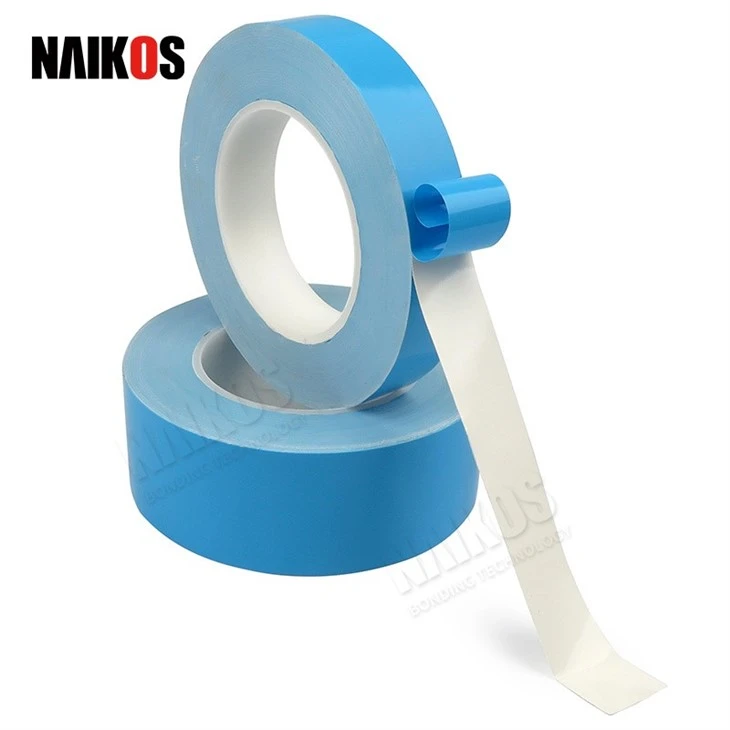

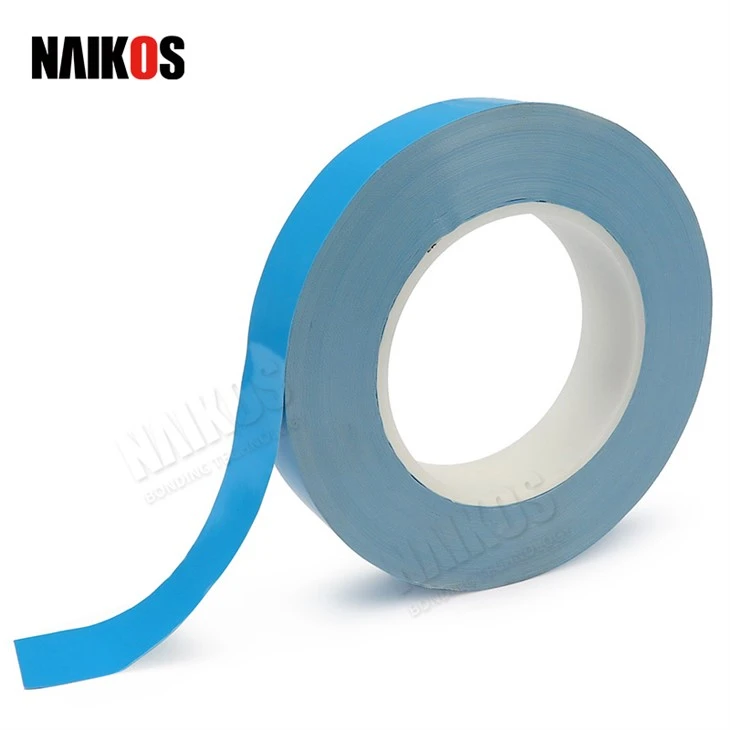

High performance thermally conductive tape is made of advanced thermal conductive PSA. They satisfy the demand for high adhesion and excellent thermal conductive efficiency by providing a preferential heat-transfer path between heat-generating components and heat sinks or other cooling devices. Thermally conductive adhesive tape is designed to provide excellent heat dissipation and conductivity, making it an ideal choice for use in electronic devices, automotive systems, aerospace engineering projects, and many other applications.
Products Features
One of the key benefits of using thermally conductive tape is that it can help to prevent overheating in critical components, which can prolong the lifespan of the device or system. Moreover, the tape can also help improve performance, reliability, and energy efficiency by reducing thermal resistance and maximizing heat transfer.
Another advantage of using thermally adhesive tape is that it is easy to apply and can be customized to meet specific requirements. This makes it an ideal solution for a range of industries and applications, and it can be used to bond a range of materials, including metals, plastics, and other substrates.
Product Construction
Physical Properties
| Item | NKS-## | NKS-##N | Test Method |
Carrier | Glass Fabric | N/A | --- |
Adhesive | Thermally Conductive PSA | Thermally Conductive PSA | --- |
Total thickness（mm） | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
Color | White | White | VISUAL |

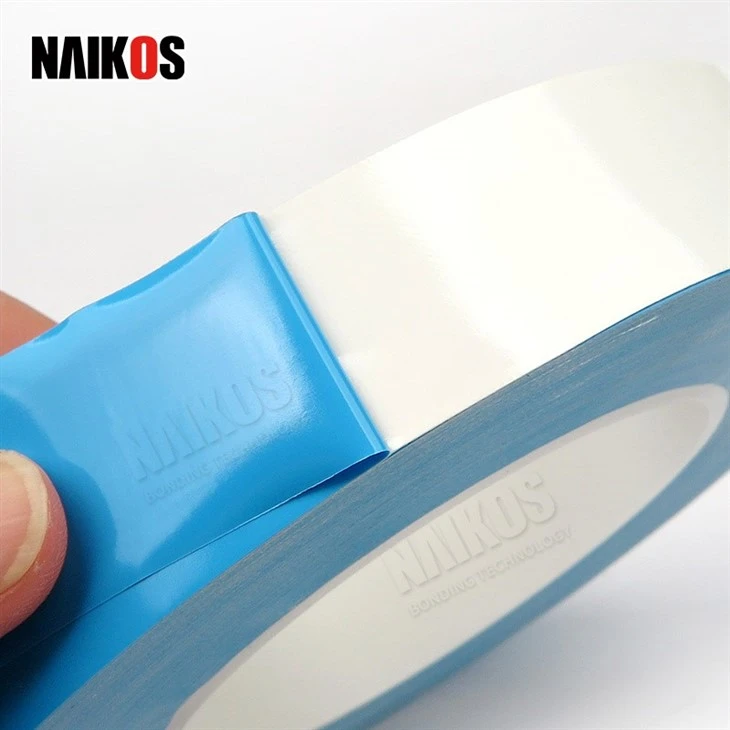

Release Liner | Blue PE Film | White Release Paper | VISUAL |
Adhesion (N/25mm) | 12~18 | 12~18 | PST-101 |
Thermal Conductivity(W/m-k) | 1.2 | 1.2 | ASTM D22470 |
Voltage Resistance(KV/mm) | 3.5~8.0 | 3.5~8.0 | ASTM D149 |
| Temperature Resistance(Short Term, ℃/℉） | 120(℃) 248(℉) | 120(℃) 248(℉) | EN344 |
Temperature Resistance(Long Term, ℃/℉） | 80(℃) 176(℉) | 80(℃) 176(℉) | EN344 |

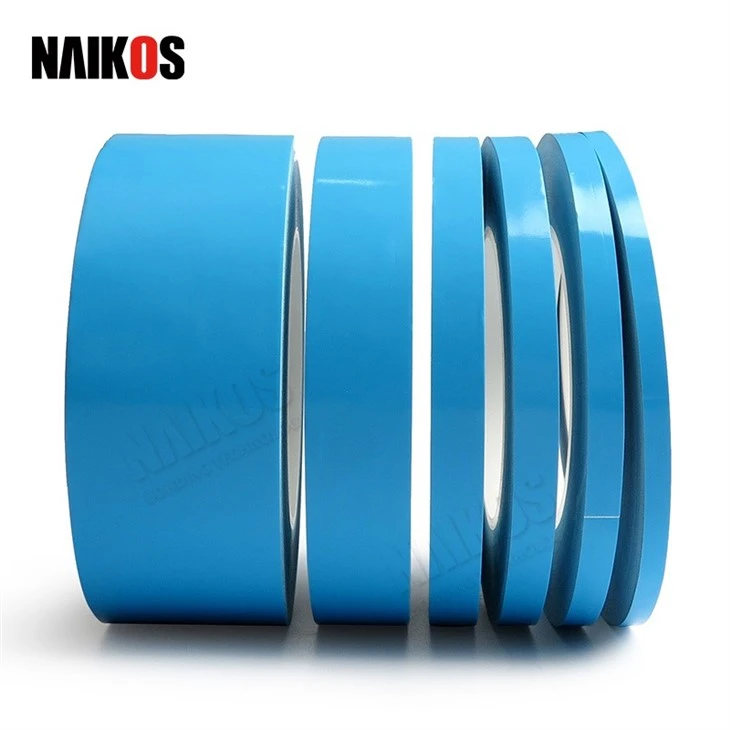

Standard width（mm） | 2~1030(Customized Available) | ||
Standard length（m） | 25/50(Customized Available) | ||
Note: The above data is the general value of product testing, it is only for reference and does not represent the actual value of this product.
Products Application
High performance thermally conductive tape is widely used for high-power LED, High power supply, Computer CUP, GPU, automotive electronic heating modules, motor controllers, communication equipment, power semiconductor, MOS tube, GBT chip, Video Card RAM, DDR Memory Modules, SSD drives, new energy heating power.
When selecting a thermal tape, it is important to choose a high-quality product that can deliver consistent performance under different conditions. Look for options that feature advanced adhesive technologies and have been tested for thermal conductivity, adhesion strength, durability, and other key factors.
Some of the factors that can impact the performance of thermally conductive tape include the operating temperature range, the thermal conductivity rating, the thickness of the tape, and the type of adhesive used. It is important to choose a product that can meet the specific requirements of the application and to work with a supplier that can offer expert guidance and support.
High performance thermally conductive tape is an excellent solution for transferring heat in a range of applications, and it can help improve performance, reliability, and efficiency. By selecting a high-quality product supplier, you can be sure to get the best results from your project and enjoy the many benefits of using thermally conductive tape.
